Adjustable extension links, type ПРР

Adjustable extension links are intended for stepwise adjustment of the suspension set length and installation of beam yoke plates, type 2КЛ, 3КЛ, 4КЛ, 5КЛ and others. Adjustable extension links, type ПРР consist of four plates which if combined in pairs form clevis and tongue sides of a link. Plates have eyes with a different pitch that allows variation of the length of a link and consequently of a suspension set by means of shifting the cotter-pins between the eyes. Plate on the tongue side has excesses allowing provision of the standard dimensions of the eyes. The link is completed with two threaded pins, nuts and dowels. Adjustable extension links, type ПРР meet the requirements of TU U 31.2-30255335-002:2006.

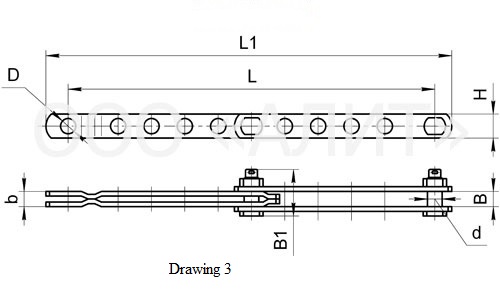

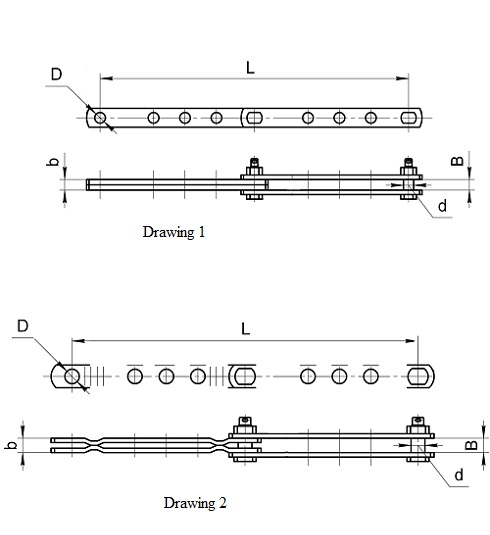

Mark	Drawing	Dimensions, mm						Weight, kg	Breaking load, kN
Mark	Drawing	D	d	b	B	L max	L min	Weight, kg	Breaking load, kN
ПРР-7-1	1	17	16	16	17	490	305	2,16	70
ПРР-12-1	2	23	22	22	23	550	350	3,81	120
ПРР-16-1	2	26	25	25	26	550	350	5,00	160
ПРР-21-1	2	29	28	28	29	750	475	8,40	210
ПРР-25-1	2	34	32	32	34	750	475	10,90	250
ПРР-30-1	2	38	36	36	38	750	475	13,50	300
ПРР-35-1	2	40	38	38	40	950	600	20,50	350
ПРР-45-1	2	42	40	40	42	950	600	23,00	450
ПРР-53-1	2	44	42	42	44	950	600	26,70	530
ПРР-60-1	2	47	45	45	47	950	600	29,60	600
ПРР-75-1	2	52	50	50	52	1150	725	48,50	750
ПРР-90-1	3	58	56	56	58	1400	835	65,60	900
ПРР-120-1	1	67	65	65	67	1450	900	102,40	1200
ПРР-135-1	1	72	70	70	72	1450	900	123,70	1350
ПРР-160-1	1	77	75	75	77	1450	900	167,60	1600
ПРР-180-1	1	83	80	80	83	1450	900	169,60	1800
