Armor rods, type ПЗ-Dпр-1Б (ПГН)

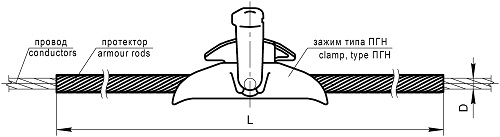

Armor rods consist of separate spirals which are wound on a surface of a steel-aluminum conductor. Its length is selected so as to enable installation of vibration dampers on both sides of a suspension clamp, type ПГН. Suspension clamp, type ПГН is not included in the scope of supply of armor rods and needs to be ordered separately.
Armor rods, type ПЗ-Dпр-1Б (ПГН) are intended for installation on steel-aluminum conductors of a cross-section 240 to 600 mm² in the mount points of suspension clamps, type ПГН-5-3, ПГН-6-5 and ПГН-8-8.
| Mark “ALIT” | Analog of a clamp | Wires of the АС, АСКП, АСКС, АСК | Length is L, mm | Type, ПГН | |
| Section, mm ² | Diameter of Dпр, mm | ||||
| ПЗ-21,6-1Б(ПГН) | ПЗС-21,6-03 | 240/32 240/39 | 21,6 | 2 200 | ПГН-5-3 |
| ПЗ-22,4-1Б(ПГН) | ПЗС-22,4-03 | 240/56 | 22,4 | 2 200 | ПГН-5-3 |
| ПЗ-24,0-1Б(ПГН) | ПЗС-24,0-03 | 300/39 300/48 | 24,0 24,1 | 2 300 | ПГН-5-3 |
| ПЗ-24,5-1Б(ПГН) | ПЗС-24,5-03 | 300/67 | 24,5 | 2 300 | ПГН-5-3 |
| ПЗ-24,8-1Б(ПГН) | ПЗС-24,8-03 | 330/30 330/43 | 24,8 25,2 | 2 300 | ПГН-5-3 |
| ПЗ-26,0-1Б(ПГН) | ПЗС-26,0-03 | 400/18 400/22 | 26,0 26,6 | 2 300 | ПГН-6-5 |
| ПЗ-27,5-1Б(ПГН) | ПЗС-27,5-03 | 400/51 | 27,5 | 2 300 | ПГН-6-5 |
| ПЗ-30,6-1Б(ПГН) | – | 500/64 | 30,6 | 2 500 | ПГН-8-8 |
| ПЗ-33,2-1Б(ПГН) | – | 600/72 | 33,2 | 2 500 | ПГН-8-8 |
