Suspension clamps, type ПГ
Suspension clamps type ПГ provide fastening to the supporting wire suspension and lightning protection cable. Suspension clamps, type ПГ meet the requirements of TU U 31.2-30255335-002:2006.
| Mark | Dimensions, mm | Diameter, mm | Marks of ropes (wires) | Weight, kg | Breaking load, kN | |||
| L | H | wire | rope | wire ПС | ||||

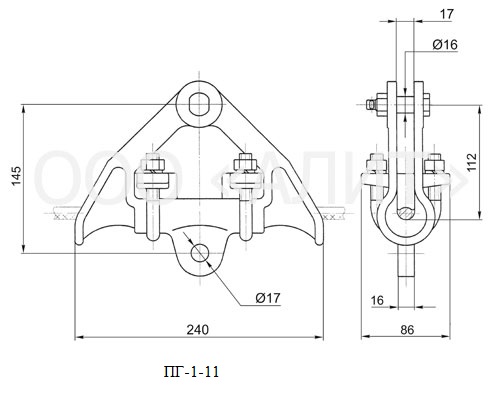

| ПГ-1-11 | – | – | – | 11,0 – 13,0 | – | C70 – C100 | 2,59 | 60 |

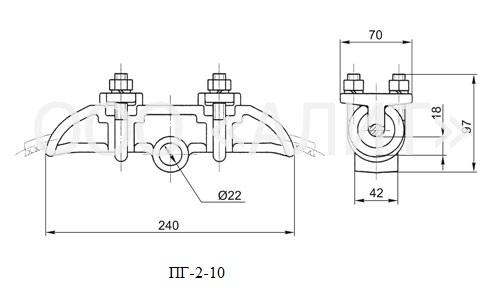

| ПГ-2-10 | – | – | – | 7,8 – 13,0 | – | С35 – С100 | 1,96 | 30 |

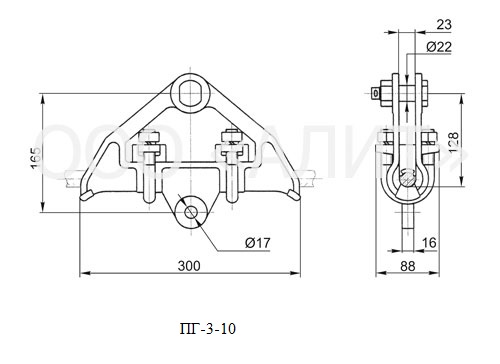

| ПГ-3-10 | – | – | 11,0 – 15,4 | 21,5 | – | С276; AC70/72; АС95/141 | 4,25 | 60 |

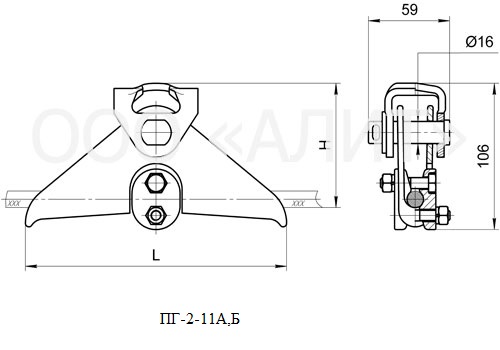

| ПГ-2-11А | 190 | 89 | 6,4 – 9,0 | – | – | А25-А50; AC25/4.2-AC40/6,7 | 0,94 | 25 |
| ПГ-2-11Б | 190 | 89 | 9,2 – 12,6 | – | – | А50-А95; AC50/8,0-AC70/11 | 0,93 | 30 |

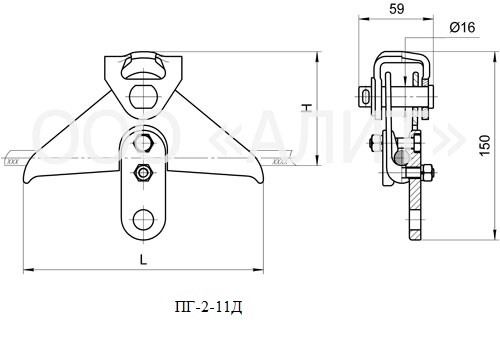

| ПГ-2-11Д | 190 | 89 | – | 8,0-10,5 | 9,2 | С35 – С75 | 0,96 | 60 |

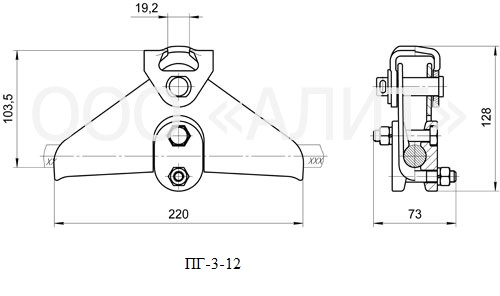

| ПГ-3-12 | 220 | 103,5 | 12,6 -19,6 | – | – | А120-А185; AC95/16 – AC185/43 | 1,30 | 30 |
