Compression tension clamps, type НАСУС

Compression tension clamps, type НАСУС are intended for stringing of extra-durable steel-aluminum conductors which are used for overhead crossing of transmission lines over water streams and other obstructions. Design of the compression clamps, type НАСУС is similar to the clamps, type НАС, except for the types НАСУС-185-1, НАСУС-500-1 and НАСУС-500ЖС-1 which, unlike clamps type НАС, have an extended steel anchor that allows releasing stress load from the aluminum sleeve of a clamp, which is weakened at the borehole. When crimping clamps, type НАСУС and НАС, in the field, an eye can be oriented in any plane. Compression tension clamps, type НАСУС meet the requirements of TU U 31.2-30255335-002:2006.

Mark	Drawing	Wire mark	Clamp details	Compression matrix	Dimensions,mm										Weight, kg	Breaking load,kN
					d	D	B	d1	S	I1	I2	I3	H	L

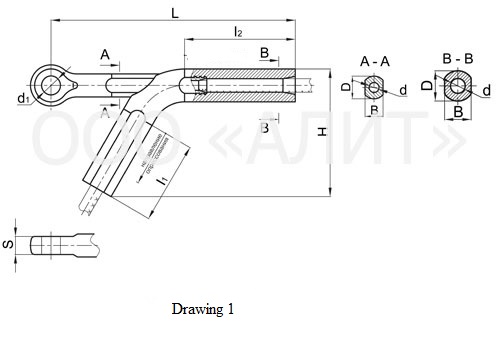

НАСУС-70-1	1	AC70/72	body	А-36	16,5	40	35	23	22	100	120		155	265	1,52	96,83
			anchor	С-23	12	28	22
НАСУС-95-1	1	АС95/141	body	А-46	22	52	45	29	28	100	165		168	335	3,20	180,78
			anchor	С-30	16,5	36	29

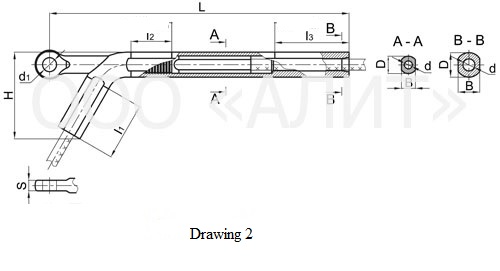

НАСУС-185-1	2	AС185/128	body	А-46	25	52	45	29	28	120	85	155	203	625	6,16	206,79
			anchor	С-30	16,5	36	29
НАСУС-300-1	1	AC300/204	body	А-51	31,5	58	50	40	38	120	230		196	425	4,60	320,15
			anchor	С-36	20	42	35
НАСУС-500-1	1	AC500/336	body	МШ-65	39,5	75	–	44	42	150	120	175	236	975	22,80	524,98
			anchor	С-48	25,5	56	47
НАСУС-70 ЖС-1	1	АЖС70/39	body	А-36	15	40	36	23	22	100	185		164	350	1,67	73,13
			anchor	С-23	10	28	22
НАСУС-500 ЖС-1	2	АЖС 500/336	body	МШ-65	39	75	–	47	45	150	120	200	248	1000	18,10	578
			anchor	С-43	25	52	42
