Hinges, type КГ
Hinges, type КГ are intended for fastening of the tension and suspension insulator strings to the metal cross arms of the towers. They ensure high operational reliability under the dynamic and pulsing horizontal or vertical load. Hinges, type KГ meet the requirements of TU U 31.2-30255335-002:2006.

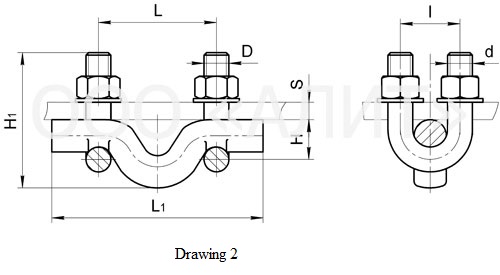

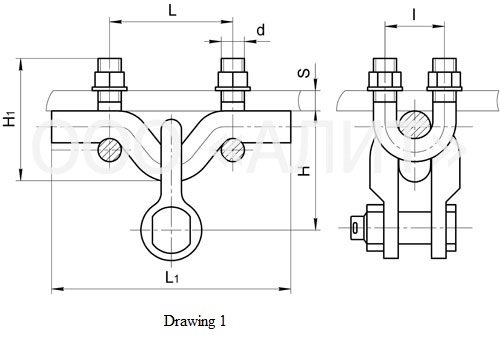

| Mark | Drawing | Dimensions,mm | complete with U-shackle | Weight, kg | Breaking load,kN | ||||||
| d | H | H1 | S | L | L1 | І | |||||
| КГ-12-1 | 1 | М16 | 92 | 90 | 7-20 | 85 | 158 | 41 | СК-12-1А | 2,05 | 120 |
| КГ-16-1 | 1 | М20 | 99 | 97 | 16-26 | 95 | 170 | 48 | СК-16-1А | 3,06 | 160 |
| КГ-21-1 | 1 | М20 | 104 | 108 | 16-26 | 95 | 170 | 48 | СК-21-1А | 3,66 | 210 |
| КГ-25-1 | 1 | М24 | 125 | 117 | 16-20 | 100 | 175 | 55 | СК-25-1А | 5,86 | 250 |
| КГ-30-1 | 1 | М24 | 140 | 135 | 16-30 | 118 | 200 | 60 | СК-30-1А | 6,84 | 300 |
| КГ-40-1 | 1 | М30 | 215 | 148 | 16-30 | 138 | 240 | 70 | СКД-45-1 | 12,80 | 400 |
| КГ-12-3 | 2 | М16 | 27 | 90 | 7-20 | 85 | 158 | 41 | – | 1,14 | 120 |
| КГ-21-3 | 2 | М20 | 29 | 108 | 16-26 | 95 | 170 | 48 | – | 1,84 | 210 |
| КГ-25-3 | 2 | М24 | 35 | 117 | 16-20 | 100 | 175 | 55 | – | 2,90 | 250 |
| КГ-30-3 | 2 | М24 | 40 | 135 | 16-30 | 118 | 200 | 60 | – | 3,60 | 300 |
| КГ-40-3 | 2 | М30 | 46 | 148 | 16-30 | 138 | 240 | 70 | – | 6,47 | 400 |
