Ball eyes, type CP
Ball eyes, type CP and CPC are intended for building up the conductor/ground wire suspension sets of OTL. Ball eyes are connected to an insulator cap or a shackle by a pin. Size of the insulator cap socket and tongue shall comply with the conventional sizes of the pin balls. Ball eyes are connected to the clevis eye fittings by a socket tongue. The breaking load of a ball eye is adequate to a breaking load of the coupling fitting connected to it. Special ball eyes, type CPC-7-16 are used with the hinges and other chain type items. The socket eye of a СРС type has a rounded edge finish to facilitate connection with U-bolts. Ball eyes, type CP and CPC meet the requirements of TU U 31.2-30255335-002:2006.
| Mark | Drawing | Dimensions, mm | Weight, kg | Breaking load, kN | |||||
| D1 | d | D | b | H | Н1 | ||||

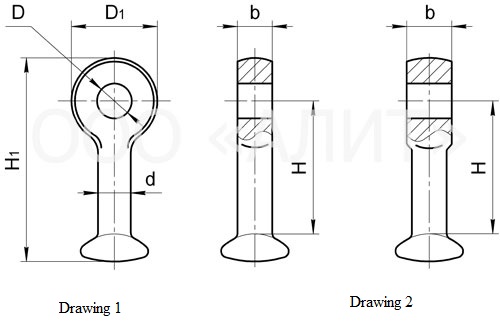

| СР-7-16 | 1 | 42 | 17 | 17 | 16 | 65 | 99,4 | 0,26 | 70 |
| СР-12-16 | 2 | 45 | 17 | 23 | 22 | 65 | 100,9 | 0,32 | 120 |
| СР-16-20 | 2 | 50 | 21 | 26 | 25 | 70 | 114,5 | 0,55 | 160 |
| СР-21-20 | 2 | 52 | 21 | 29 | 28 | 80 | 127 | 0,56 | 210 |
| СР-30-24 | 2 | 67 | 25 | 38 | 36 | 100 | 154,5 | 1,36 | 300 |
| СР-40-28 | 2 | 77 | 29 | 42 | 40 | 120 | 182 | 1,85 | 400 |

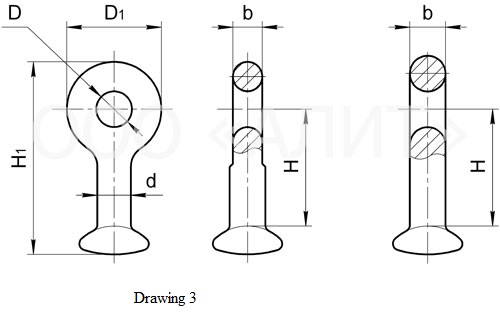

| СРС-7-16 | 3 | 57 | 17 | 23 | 17 | 65 | 106,9 | 0,32 | 70 |
