Corner links, type ПТМ

Corner links are intended for the ease of installation of the tension and suspension sets and coupling of the tongue and clevis eye fittings. Corner links, type ПТМ meet the requirements of TU U 31.2-30255335-002:2006.

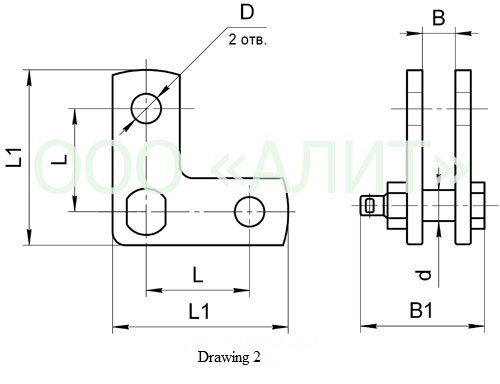

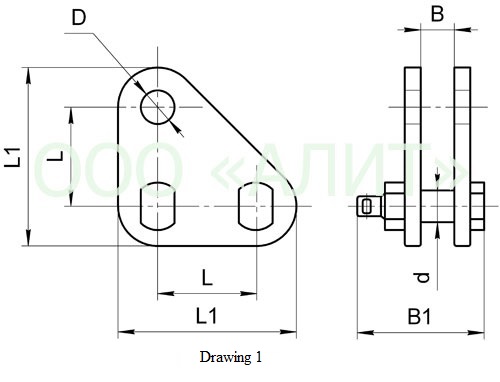

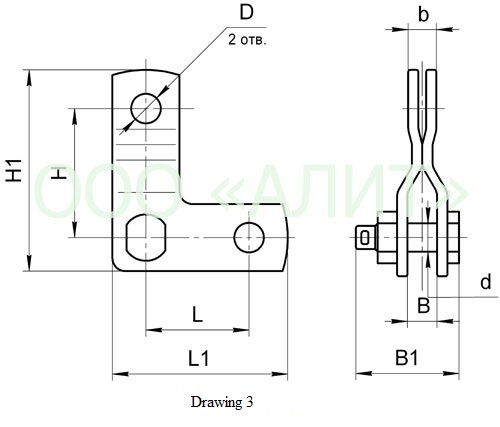

Mark	Drawing	Dimensions, mm									Weight, kg	Breaking load, kN
Mark	Drawing	D	b	d	B	В1	H	H1	L	L1	Weight, kg	Breaking load, kN
ПТМ-7-3	1	17	–	16	17	61	–	–	50	88	0,67	70
ПТМ-12-3	1	23	–	22	23	78	–	–	70	122	1,72	120
ПТМ-16-3	1	26	–	25	26	78	–	–	80	144	2,42	160
ПТМ-21-3	1	29	–	28	29	93	–	–	80	146	3,20	210
ПТМ-25-3	1	34	–	32	34	110	–	–	95	167	5,03	250
ПТМ-30-3	1	38	–	36	38	120	–	–	100	172	6,72	300
ПТМ-7-3А	2	17	–	16	17	61	–	–	50	86	0,60	70
ПТМ-12-3А	2	23	–	22	23	78	–	–	70	122	1,70	120
ПТМ-16-3А	2	26	–	25	26	83	–	–	80	144	2,34	160
ПТМ-21-3А	2	29	–	28	29	93	–	–	80	140	2,87	210
ПТМ-25-3А	2	34	–	32	34	110	–	–	95	167	4,83	250
ПТМ-30-3А	2	38	–	36	38	120	–	–	100	172	6,02	300
ПТМ-7-2	3	17	16	16	17	61	80	116	60	96	0,65	70
ПТМ-12-2	3	23	22	22	23	78	100	152	80	132	1,58	120
ПТМ-16-2	3	26	25	25	26	83	110	174	90	154	2,20	160
ПТМ-21-2	3	29	28	28	29	98	115	175	90	153	2,48	210
ПТМ-25-2	3	34	32	32	34	110	135	207	100	172	4,90	250
ПТМ-30-2	3	38	36	36	38	120	140	212	100	172	5,07	300
ПТМ-35-2	3	40	38	38	40	125	150	230	110	190	9,40	350
ПТМ-45-2	3	42	40	40	42	130	160	250	120	210	9,80	450
ПТМ-53-2	3	44	42	42	44	137	165	261	120	216	13,60	530
ПТМ-60-2	3	47	45	45	47	142	185	295	140	250	12,00	600
ПТМ-75-2	3	52	50	50	52	162	195	315	150	270	23,50	750
ПТМ-90-2	3	58	56	56	58	175	220	360	170	310	31,40	900
ПТМ-110-2	3	62	60	60	62	195	245	410	200	365	37,00	1100
ПТМ-120-1	3	67	65	65	67	195	300	480	250	430	50,80	1200
ПТМ-135-1	3	72	70	70	72	215	320	500	270	450	47,90	1350
ПТМ-160-1	3	77	75	75	77	240	340	540	290	490	74,10	1600
ПТМ-180-1	3	83	80	80	83	240	360	560	310	510	80,10	1800
