Helical connecting loop clamps, type ССШ-Dпр-3А
Helical connecting loop clamps, type ССШ-Dпр-3A is used for connection of ground wires in the jumper loops of overhead power transmission lines.

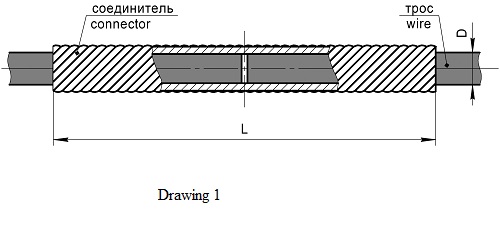

Drawing 1 – Helical connecting loop clamp, type ССШ-Dпр-3A for connection of ground wires of the cross-section less then 80 mm ²

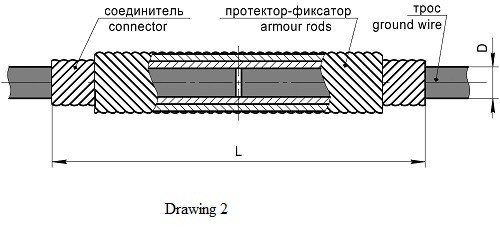

Drawing 2 – Helical connecting loop clamp, type ССШ-Dпр-3A for connection of ground wires of the cross-section over 80 mm ²
Helical connecting loop clamp, type ССШ-Dпр-3A for the ground wires of a cross-section over 80 mm² consists of:
- connector made of steel spiral strands;
- armor rods made of separate wire spirals or strands.
Helical connecting loop clamps, type ССШ-Dпр-3A for ground wires of a cross-section less than 80 mm² has only one connector.
| Mark “ALIT” | Analog of a clamp | Analog «ALIT» | Steel ropes | Length is L, mm | |
| Section, mm ² | Diameter of Dпр, mm | ||||
| ССШ-9,1-3А | ШС-9,1-11 | СВС 50-3 | 48,64 | 9,1 | 750 |
| ССШ-11,0-3А | ШС-11,0-11 | СВС 70-3 | 72,95 | 11 | 750 |
| ССШ-14,0-3А | ШС-14,0-11 | СВС 120-3 | 117,9 | 14 | 850 |
| ССШ-20,0-3A | ШС-20,0-11 | СВС 260-3 | 228,74 | 20 | 1000 |
