Suspension clamps, type ПГН-8-6, 3ПГН2-8-1, 4ПГН2-8-2

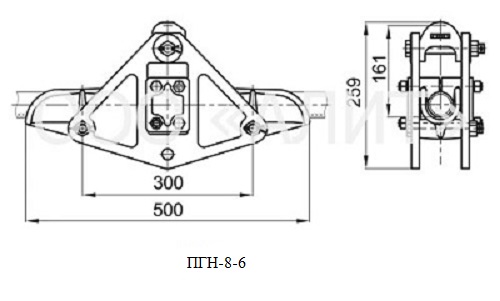

Suspension clamp, type ПГН-8-6 is responsible for fastening of a hollow conductor, type ПА-500 to the suspension string. The clamp is intended for a flexible busbar insulation at outdoor switchgear and consists of two aluminum trays hinged on the two aluminum yoke retainers. Clamp type 3ПГН2-8-1 ensures fastening of three hollow wires of the bundle phase conductor to the suspension string, and clamp type 4ПГН2-8-2 – of four hollow wires. Clamps prevent their axial movement under normal operating conditions. Depending on a conductor’s diameter range, clamps are equipped with the suitable shaped seals made of aluminum alloy Suspension clamps, type ПГН-8-6, 3ПГН2-8-1, 4ПГН2-8-2 meet the requirements of TU U 31.2-30255335-002:2006.
