Support clamps, type AA
Support clamps, type AA provides fastening of a single hollow aluminum, steel-aluminum or copper conductor on the post insulators as a part of busbar insulation of outdoor switchgear at high voltage substations. During clamp installation busbar supports should be placed so that the mount holes of post insulators and a clamp are pairwise symmetric about the conductor’s
centerline. Support clamps, type AA meet the requirements of TU U 31.2-30255335-002:2006.

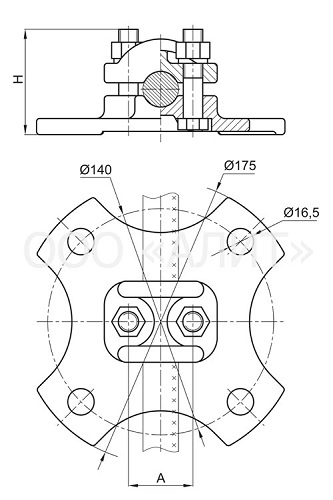

| Mark | Wire mark | Diameter of aluminum and steel-aluminum wires, mm | Dimensions, mm | Weight, kg | Breaking load,kN | ||||
| Aп, АКП | АС, АСКС, АСКП, АСК | ПМ | ПА | H макс. | A | ||||
| АА-4-3 | 185; 240; 300 | 185/24; 185/29; 205/27; 240/32; 240/39 | – | – | 17,5-22,1 | 68 | 65 | 0,69 | 4,9 |
| АА-5-3 | 350; 400; 450; 500 | 300/39; 300/48; 330/30; 330/43; 400/51; 400/54; 450/56; 500/27 | – | – | 24,0-29,4 | 68 | 65 | 0,70 | 4,9 |
| АА-6-3 | 550; 600; 650; 700; 750 | 500/26; 500/64; 550/71; 600/72; 650/79; 700/86 | 240; 300 | – | 30,0-36,2 | 75 | 65 | 0,72 | 4,9 |
| АА-8-3 | – | – | – | 500 | 45/37 | 86 | 65 | 0,87 | 4,9 |
