Sockets clevis, type У2K and У2
Sockets clevises, type У2K and У2 are intended for coupling of a suspended insulator pin or a pin ball with other socket tongue fittings. Sockets clevises meet the requirements of TU U 31.2-30255335-002:2006.

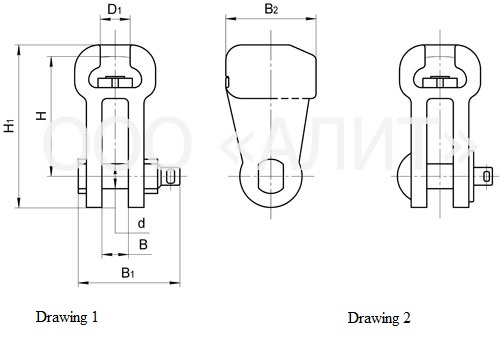

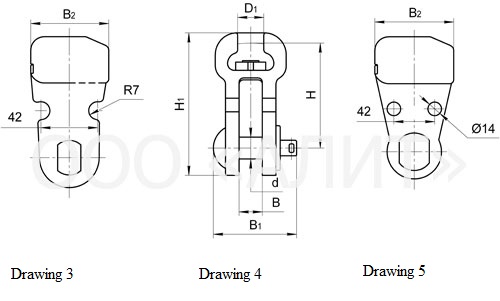

| Mark | Drawing | Dimensions, mm | Weight, kg | Breaking load, kN | ||||||
| d | B | В1 | В2 | D1 | H | H1 | ||||
| У2К-7-16 | 1,2 | 16 | 17 | 61 | 58 | 19,2 | 77 | 104,5 | 0,75 | 70 |
| У2-7-16 | 3,4 | 16 | 17 | 61 | 58 | 19,2 | 95,5 | 123 | 0,84 | 70 |
| У2-12-16 | 3 | 22 | 23 | 83 | 62 | 19,2 | 102,5 | 140 | 1,50 | 120 |
| У2-16-20 | 5 | 25 | 26 | 88 | 75 | 23 | 113,5 | 152 | 2,14 | 160 |
| У2-21-20 | 5 | 28 | 29 | 98 | 79 | 23 | 139 | 183 | 3,50 | 210 |
| У2-30-24 | 5 | 36 | 38 | 125 | 94 | 27,5 | 150 | 205,5 | 6,43 | 300 |
