Y clevis-tongue links, type ПРТ

Y clevis-tongue extension links are intended for increase of suspension set length and coupling of the tongue and clevis eye fittings. Structurally the link consists of two bent plates in such a way that there is a tongue eye on the one side of a link and a clevis eye with a bolt and nut and a dowel on another side. Y clevis-tongue links, type ПРТ meet the requirements of TU U 31.2 30255335-002:2006.

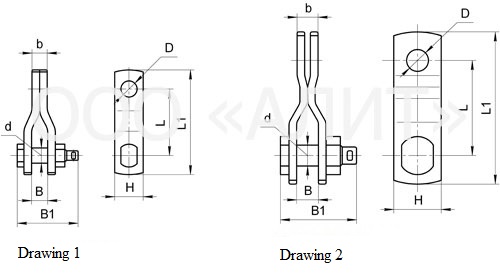

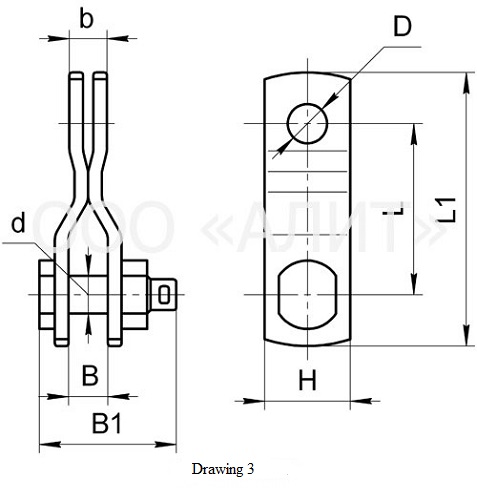

Mark Drawing Dimensions, mm Weight, kg Breaking load, kN
D b d B В1 H L L1
ПРТ-7-1 1 17 16 16 17 61 30 70 110 0,57 70
ПРТ-12-1 2 23 22 22 23 78 45 100 160 1,04 120
ПРТ-16-1 2 26 25 25 26 83 60 110 180 1,52 160
ПРТ-21-1 2 29 28 28 29 98 56 115 185 2,12 210
ПРТ-25-1 2 34 32 32 34 110 63 135 215 3,27 250
ПРТ-30-1 2 38 36 36 38 120 70 140 220 4,20 300
ПРТ-35-1 2 40 38 38 40 125 75 150 240 5,37 350
ПРТ-45-1 2 42 40 40 42 130 85 160 260 7,21 450
ПРТ-53-1 2 44 42 42 44 137 85 165 265 8,00 530
ПРТ-60-1 2 47 45 45 47 142 95 185 305 9,78 600
ПРТ-75-1 2 52 50 50 52 162 110 195 325 12,90 750
ПРТ-90-1 2 58 56 56 58 175 120 220 370 17,04 900
ПРТ-110-1 2 62 60 60 62 195 140 245 425 22,30 1100
ПРТ-7/12-2 3 17 16 22 23 73 45 95 145 0,80 70
ПРТ-7/16-2 3 17 16 25 26 78 45 95 145 0,85 70
ПРТ-7/21-2 3 17 16 28 29 83 45 105 160 1,11 70
ПРТ-12/7-2 3 23 22 16 17 61 45 95 145 0,63 70
ПРТ-12/16-2 3 23 22 25 26 83 45 110 175 1,12 120
ПРТ-12/21-2 3 23 22 28 29 88 60 110 175 1,76 120
ПРТ-12/45-2 3 23 22 40 42 115 63 150 220 3,43 120
ПРТ-16/12-2 3 26 25 22 23 78 45 110 175 1,26 120
ПРТ-16/21-2 3 26 25 28 29 88 60 115 185 1,90 160
ПРТ-16/25-2 3 26 25 32 34 100 70 125 200 2,43 160
ПРТ-16/30-2 3 26 25 36 38 115 80 125 200 2,63 160
ПРТ-16/45-2 3 26 25 40 42 115 80 145 230 3,94 160
ПРТ-21/12-2 3 29 28 22 23 78 60 110 175 1,52 120
ПРТ-21/16-2 3 29 28 25 26 83 63 115 185 1,80 160
ПРТ-21/30-2 3 29 28 36 38 115 70 140 215 3,67 210
ПРТ-21/45-2 3 29 28 40 42 120 80 150 235 4,80 210
ПРТ-21/60-2 3 29 28 45 47 132 95 170 265 6,15 210
ПРТ-25/12-2 3 34 32 22 23 78 60 135 205 1,74 120
ПРТ-25/16-2 3 34 32 25 26 83 60 125 200 1,98 160
ПРТ-25/21-2 3 34 32 28 29 98 63 140 215 2,95 210
ПРТ-25/60-2 3 34 32 45 47 132 95 170 270 6,25 250
ПРТ-30/12-2 3 38 36 22 23 78 60 140 210 1,90 120
ПРТ-30/21-2 3 38 36 28 29 98 70 140 215 3,10 210
ПРТ-30/60-2 3 38 36 45 47 137 95 175 275 8,30 300
ПРТ-35/21-2 3 40 38 28 29 98 70 150 230 3,60 210
ПРТ-45/7-1 3 42 40 16 17 130 63 72 132 2,42 70
ПРТ-45/12-2 3 42 40 22 23 78 63 150 230 2,10 120
ПРТ-45/30-2 3 42 40 36 38 130 75 160 250 4,56 300
ПРТ-60/45-2 3 47 45 40 42 130 90 165 275 6,45 450
ПРТ-120/60-1 3 67 65 45 47 152 140 275 430 17,90 600
ПРТ-120/90-1 3 67 65 56 58 175 140 275 450 20,80 900
