Compression tension clamps, type НС

Compression tension clamps, type НС are used for stringing of steel ground wire, type ТК of a cross-section 48 to 298 mm² and a tensile strength σвр=120-140 kgf/mm². Clamp consists of a steel tube with a borehole for a ground wire and a steel pull eye welded to the end of a tube. Clamps, type НС are intended for fixing of ground wires, tower stay-guys, and steel wires in the special-purpose crossing spans. For grounding of a ground wire its end is passed through a tube and turned back to a required direction. Then the clamp is crimped, and a ground clamp, type ЗПС is crimp-connected to the
end of a ground wire. Compression tension clamps, type НС meet the requirements of TU U 31.2-30255335-002:2006.

Mark	Steel ropes		Compression matrix	Dimensions, mm						Weight, kg	Breaking load,kN

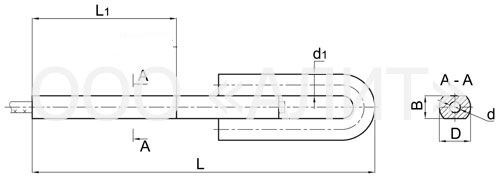

	Diameter, mm	The estimated area sections, mm²		d	D	B	d1	L1	L
НС-50-3	9,1	48,64	С-20	10	26	18	18	120	285	1,00	90,38
	9,2	50,45
	9,2	49,32
	9,8	57,33
НС-70-3	11	72,95	С-24	13	30	23	20	150	320	1,71	126,25
	11,5	80,61
	11,5	74,65
НС-100-3	12,5	94,44	С-28	13,5	34	28	24	165	355	2,80	136,88
	13	101,72
НС-120-3	14	116,89	С-30	14,5	36	29	26	190	405	3,29	169,38
	14	117,9
НС-140-3	15	135,28	С-30	16	36	29	26	190	405	3,40	178,13
	15,5	141,37
НС-150-3	16	153,84	С-34	17	42	32	28	210	435	4,41	202,5
НС-170-3	17	168,17	С-35	18	42	34	28	210	435	4,35	228,75
	17	173,6
НС-220-3	18,5	197,29	С-40	20	48	38	34	240	485	6,74	286,25
	19	217,7
НС-230-3	20	228,74	С-40	21	48	38	34	240	485	6,67	284,38
НС-260-3	21	262,51	С-42	22	53	40	34	280	530	7,96	327,5
НС-300-3	22,5	298,52	С-44	23,5	53	43	36	280	540	8,65	371,86
