Single- or double-wedge clamps for a steel rope
Single- or double-wedge clamps are intended for a steel rope which is used as stay-guys for OTL towers. Single- or double-wedge clamps for a steel rope meet the requirements of TU U 31.2-30255335-002:2006.
| Mark | Drawing | Diameter of a steel rope, mm | Dimensions, mm | Weight, kg | ||||||||
| d | B | В1 | В2 | L | L1 | L2 | L3 | H | ||||

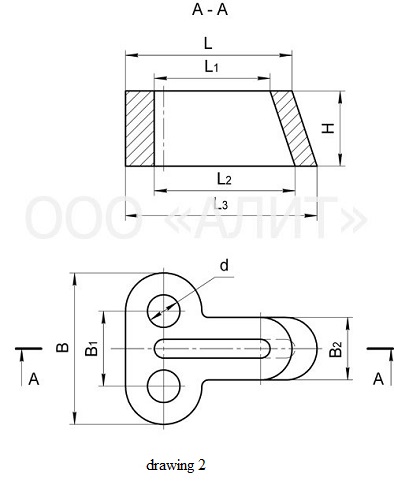

| Single-wedge clamps | 2 | 15,5 – 18,5 | 45 | 195 | 100 | 79 | 135 | 91 | 121 | 180 | 90 | 13,00 |

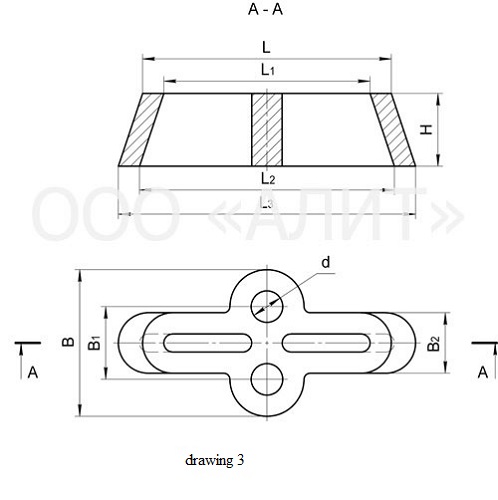

| Double-wedge clamps | 3 | 15,5 – 18,5 | 45 | 195 | 100 | 79 | 260 | 210 | 270 | 320 | 90 | 20,00 |
| Double-wedge clamps | 3 | 20,0 – 22,5 | 52 | 242 | 120 | 100 | 410 | 340 | 420 | 490 | 120 | 50,50 |

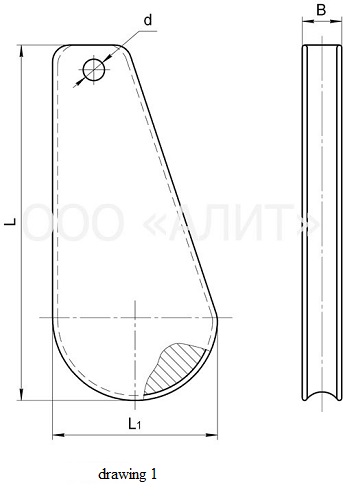

| Wedge for steel rope | 1 | 15,5 – 18,5 | 13 | 24 | – | – | 215 | 100 | – | – | – | 3,00 |
| Wedge for steel rope | 1 | 20,0 – 22,5 | 13 | 26 | – | – | 270 | 150 | – | – | – | 6,40 |
