Bolted tension clamps, type НБ

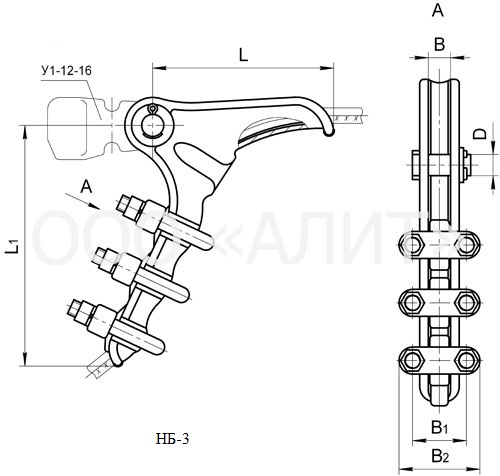

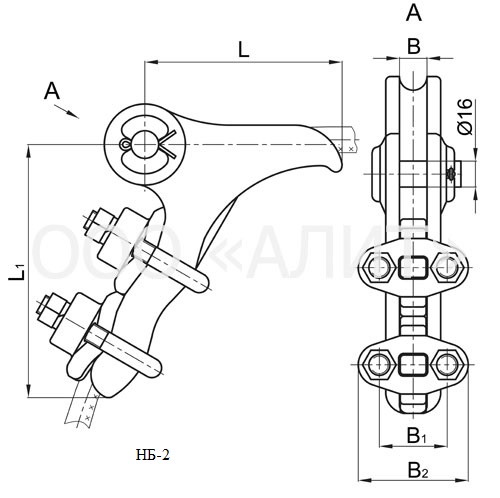

Bolted tension clamps, type НБ provide the self-supporting fixation of a bare conductor or ground wire to a tension set by means of U-bolts. Body of the tension clamp, type НБ-2-6А, НБ-3-6A is made of aluminum alloy, and of type НБ-2-6, НБ-3-6Б – of malleable iron. Bolted tension clamps, type НБ-3-6А and НБ-3-6Б are fully interchangeable both in terms of the range of wire/conductor diameters and a breaking load. Bolted tension clamps, type НБ meet the requirements of TU U 31.2-30255335-002:2006.
| Mark | Wire mark | Diameter wires, mm | Crimping strength of a wire, kN | Dimensions, mm | Weight, kg | Breaking load, kN | |||||
| D | B | В1 | В2 | L | L1 | ||||||
| НБ-2-6A | А95 | 12,3 | 13,2 | 16 | 17 | 42 | 68 | 122 | 157 | 1,00 | 57 |
| А120 | 14 | 17,7 | |||||||||
| А150 | 15,8 | 21,7 | |||||||||
| M95 | 12,6 | 33,9 | |||||||||
| M120 | 14 | 38,7 | |||||||||
| AС70/11 | 11,4 | 21,7 | |||||||||
| АС95/16 | 13,5 | 30 | |||||||||
| АС120/19 | 15,2 | 37,4 | |||||||||
| НБ-2-6 | А95 | 12,3 | 11,7 | 16 | 18 | 42 | 68 | 121 | 176 | 1,67 | |
| А120 | 14 | 17,7 | |||||||||
| А150 | 15,8 | 20,5 | |||||||||
| AС70/11 | 11,4 | 21,1 | |||||||||
| АС95/16 | 13,5 | 29,2 | |||||||||
| АС120/19 | 15,2 | 37,4 | |||||||||
| АС120/27 | 15,4 | 44,5 | |||||||||
| АС150/19 | 16,8 | 41,7 | |||||||||
| АС150/24 | 17,1 | 47 | |||||||||
| НБ-3-6A | А150 | 15,8 | 20,5 | 22 | 23 | 51 | 81 | 180 | 253 | 2,97 | 88,2 |
| А185 | 17,5 | 25,3 | |||||||||
| А240 | 20 | 33 | |||||||||
| А300 | 22,1 | 39,8 | |||||||||
| АС150/19 | 16,8 | 41,7 | |||||||||
| АС150/24 | 17,1 | 47 | |||||||||
| AC150/34 | 17,5 | 56,4 | |||||||||
| АС185/24 | 18,9 | 50,4 | |||||||||
| НБ-3-6Б | АС185/29 | 18,8 | 53,7 | 22 | 23 | 51 | 81 | 186 | 248 | 3,67 | |
| AС185/43 | 19,6 | 70 | |||||||||
| AC205/27 | 19,8 | 55,5 | |||||||||
| AC240/32 | 21,6 | 65,4 | |||||||||
| AC240/39 | 21,6 | 70,7 | |||||||||
| M150 | 15,8 | 47,1 | |||||||||
| M185 | 17,6 | 61,4 | |||||||||
| M240 | 19,9 | 78,6 | |||||||||
