Hardware terminal clamps, type A2AП, A4AП, A6AП
Hardware terminal clamps, type A2AП, A4AП, A6AP (with a double-, four-, or six-hole pad) are intended for connection of a single aluminum hollow conductor to the equipment terminals during switchgear installation. Hardware terminal clamps have better performance indicators since they do not require periodic tightening of bolts. Hardware terminal clamps, type A2AП, A4AП, A6AП meet the requirements of TU U 31.2-30255335-002:2006.
| Mark | Wire mark | Wire diameter, mm | Dimensions, mm | Compression matrix | Weight, kg | |||||
| d | D | B | І | L | Н | |||||
| А2АП-500-2 | ПA-500 | 45/37 | 47 | 65 | 58 | 140 | 270 | 21 | А-59 | 1,47 |
| А4АП-500-1А | ПA-500 | 45/37 | 47 | 65 | 58 | 140 | 275 | 15 | А-59 | 1,47 |
| А2АП-640-1 | ПА-640 | 59/51,5 | 60 | 80 | – | 200 | 380 | 25 | МШ-70 | 3,44 |
| А4АП-640-1 | ПА-640 | 59/51,5 | 60 | 80 | – | 200 | 380 | 25 | МШ-70 | 4,17 |
| A6AП-640-1 | ПА-640 | 59/51,5 | 60 | 80 | 72 | 200 | 385 | 21 | А-74 | 7,30 |
| А6АП-640-2 | ПА-640 | 59/51,5 | 60 | 80 | 72 | 200 | 385 | 21 | А-74 | 7,50 |

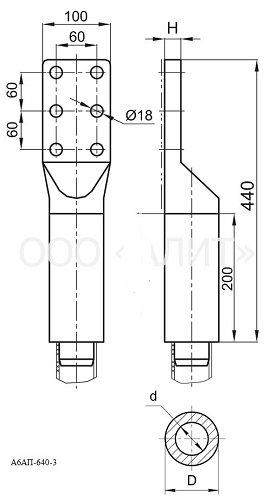

| А6АП-640-3 | ПА-640 | 59/51,5 | 60 | 80 | – | 200 | 440 | 25 | МШ-70 | 4,37 |
